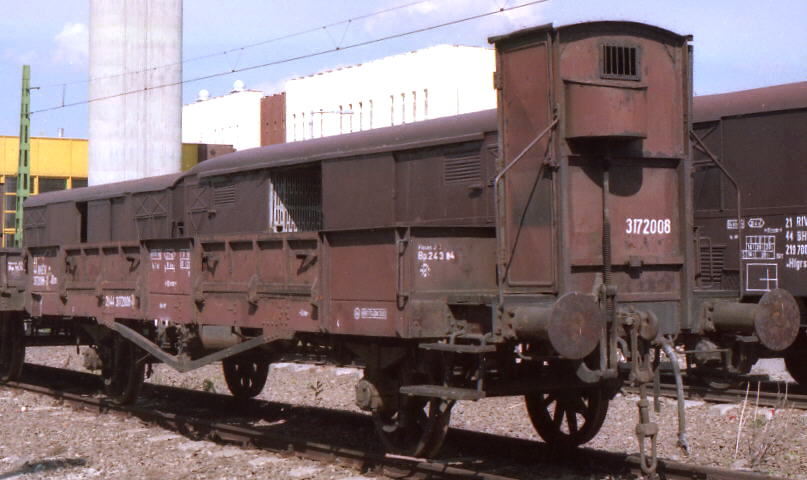

21 44 BHÉV 3172008-2 •Klmmo, Szentendre 26.07.1989 © Per Topp Nielsen
| 44 BHÉV | •Klmmo | IGA |
|
|
|
21 44 BHÉV 3172008-2 •Klmmo, Szentendre 26.07.1989 © Per Topp Nielsen |
| | CODE + VKM | 21 44 BHÉV | Budapesti Helyi Érdekü Vasutak | ||
| | Observations | 21 44 3172 000 - 3172 013 | •Klmmo Kkklmmo | ||
| | UIC 1967 | 21 44 3172 000 - 3172 013 | •Klmmo Sz |
| | 20. L/P | -- | cm | | 30. DB/SSH | 240 | cm | | 40. BR AUT | Hik-GP | |
| | 21. L/P | 1063 | cm | | 31. DH/ESH | ? | cm | | 41. BR MAN | Sbr cabin | |
| | 22. AXT/BCA | 620 | cm | | 32. FLH | ? | cm | | 42. No. built | ? | |
| | 23. BAXT | -- | cm | | 33. GLW | 30 | t | | 43. Built | 1937 | |
| | 24. IL | 858 | cm | | 34. TARE | 9,6 | t | | 44. Builder | Ganz | |
| | 25. IB | 265 | cm | | 35. ABC max | 20,0 | t | | 45. Y + | ? | |
| | 26. BFL | 22,7 | m2 | | 36. @ KM/H | ? | km/h | | 46. Y OBS | 1989 - 1990 | |
| | 27. IHS | 46 | cm | | 37. KM/H max | ? | km/h | | 47. DRW | -- | |
| | 28. IHM | 46 | cm | | 38. @ ABC | ? | t | | 48. FOTO | More photos | |
| | 29. RF | 10,4 | m3 | | 39. 120 km/h | -- | t | | 49. MORE INFO | -- |
Rem:
BHÉV 3172013 = ex MÁV 176069, 1937 Ganz

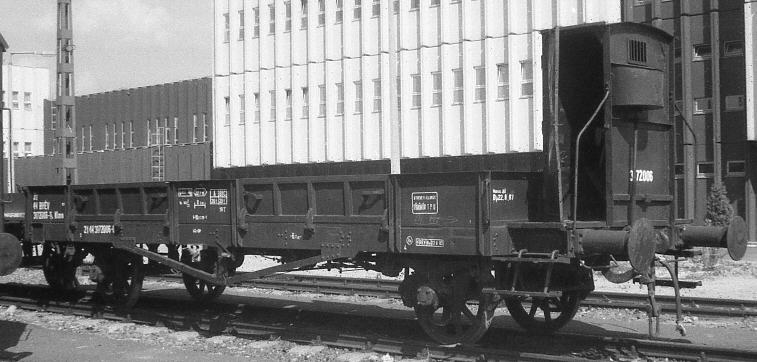

21 44 BHÉV 3172006-6 Klmo, Szentendre 26.07.1989 © Per Topp Nielsen |
